Filter medium

PES Fibre Membrane/PP Polypropylene

Support layer

Polypropylene (PP)

Filter cage

Polypropylene (PP)

Pore size

0.1,0.2,0.45,0.65,1µm

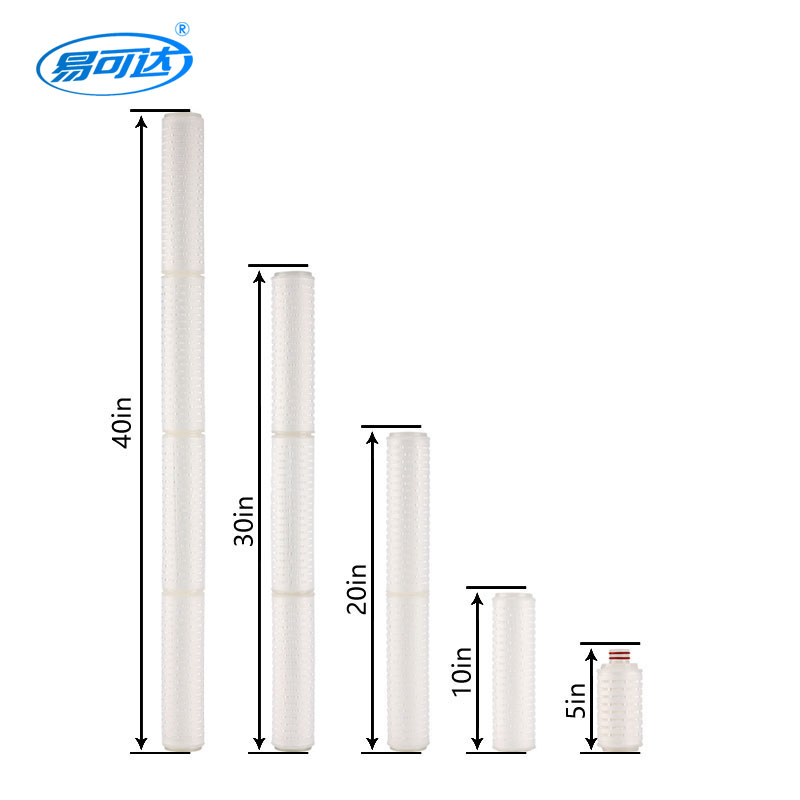

Length

5/10/20/30/40 inches

OD/ID

69 mm-34 mm

Gasket / O - rings

Silicone, NBR, EPDM, Viton

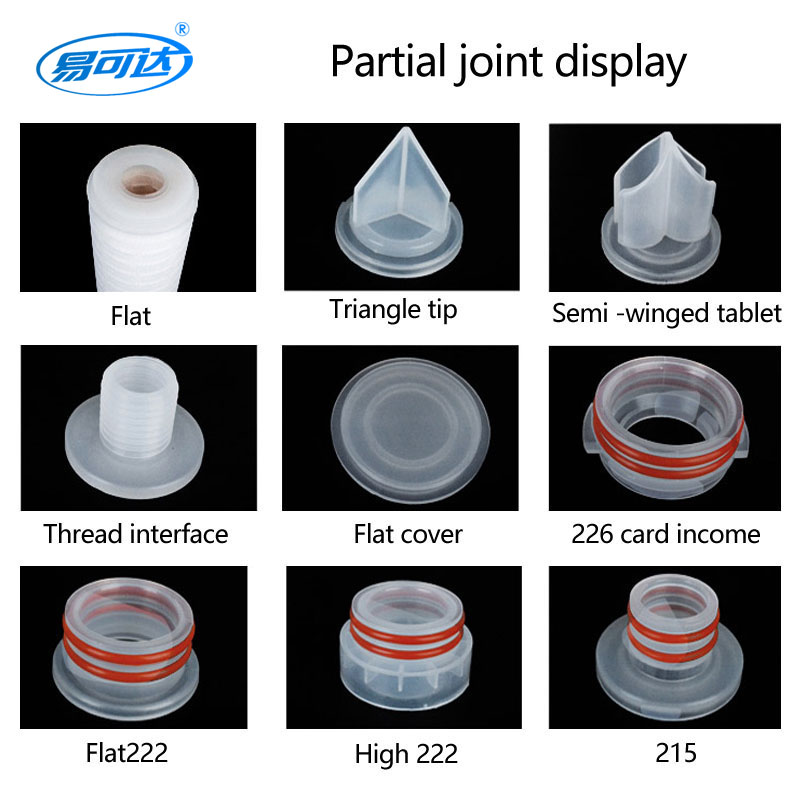

Interface

DOE,215,222,226flat/fins

End caps

DOE,0050,0050A,0050B

Sealing method

thermal bonding technique

Effective filtration area

0.6 m2/10"

Max. operating temperature

PES Fibre Membrane:140℃, 0.28 Mpa/PP Polypropylene:85℃/0.2 MPa; 25 ℃ (≥ 0.4 MPa)

Max. forwarder differential pressure

0.42 Mpa (25℃)

Max. reverse differential pressure

0.21 Mpa (25℃)

Sterilizing temperature

121℃ 30min

Absolute Rating

Filtration effective is ≥99.99%

Minimum pore size is 0.1um, suitable for critical liquid filtration

Wide Chemical

Suitable for strong alkaline and acid enviroment

compatability

Resistance to the halogens and oxide

High viscosity liquid filter

Best choice for critical filtration of high viscosity liquid.

Materials

Filter Media: PVDF Membrane

PVDF Membrane: Polypropylene

Inner core: Polypropylene /SUS304

Outer Support: Reinforced Polypropylene Cage

Adapter: Polypropylene

Operating Conditions(操作条件）

Normal Operating Temperature: Up to 65℃ (149℉) ）

Max.Operating Temperature.: 90℃ (194℉)at P≤1.0 bar (14psi)

Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉);

Reverse flow direction 2.1 bar (30psi) at 25℃ (77℉)

PH Value compatibility: 1-13
