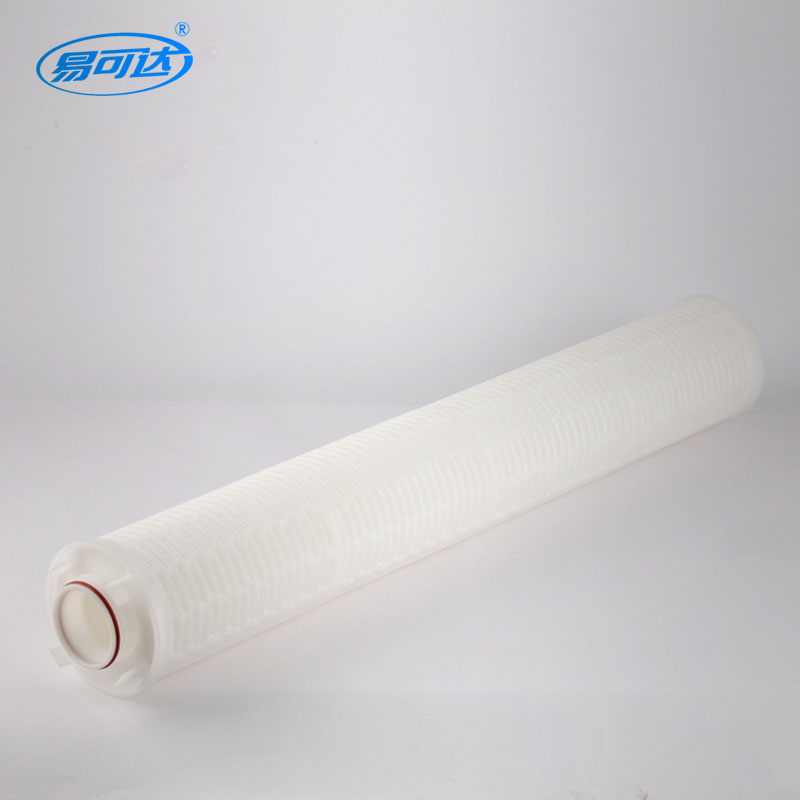

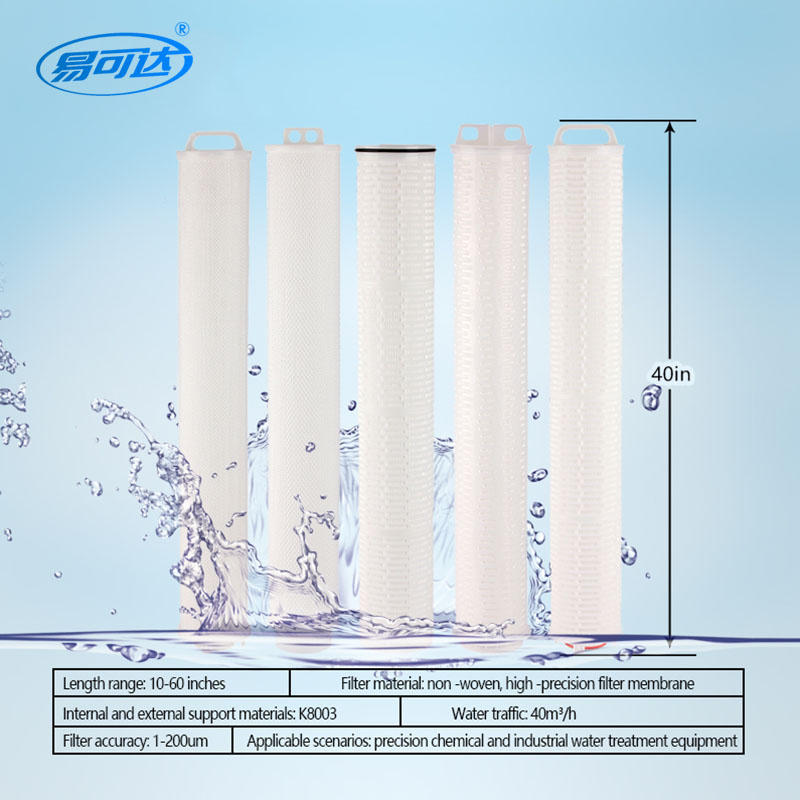

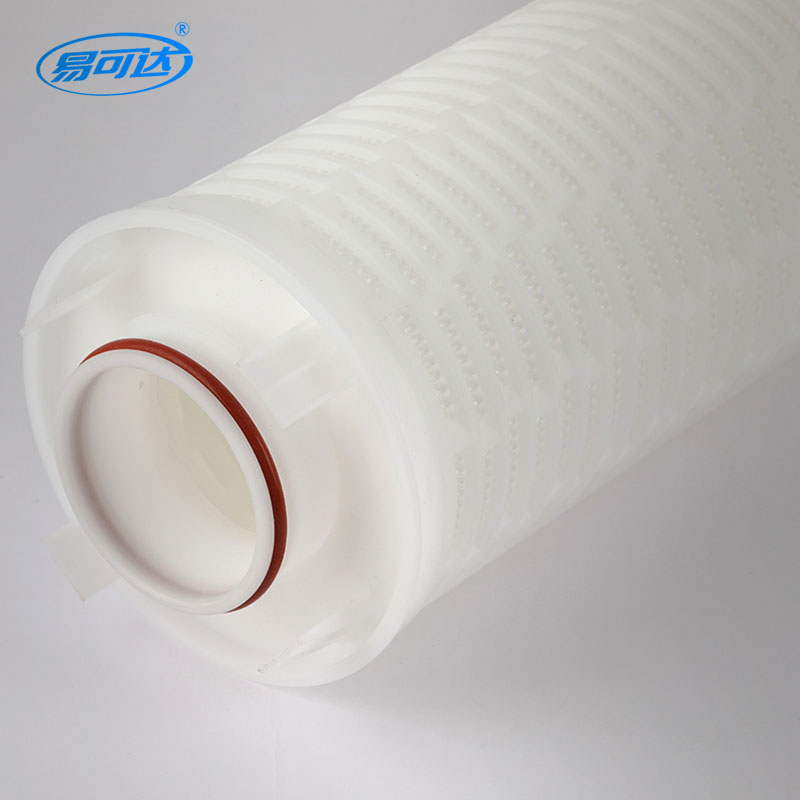

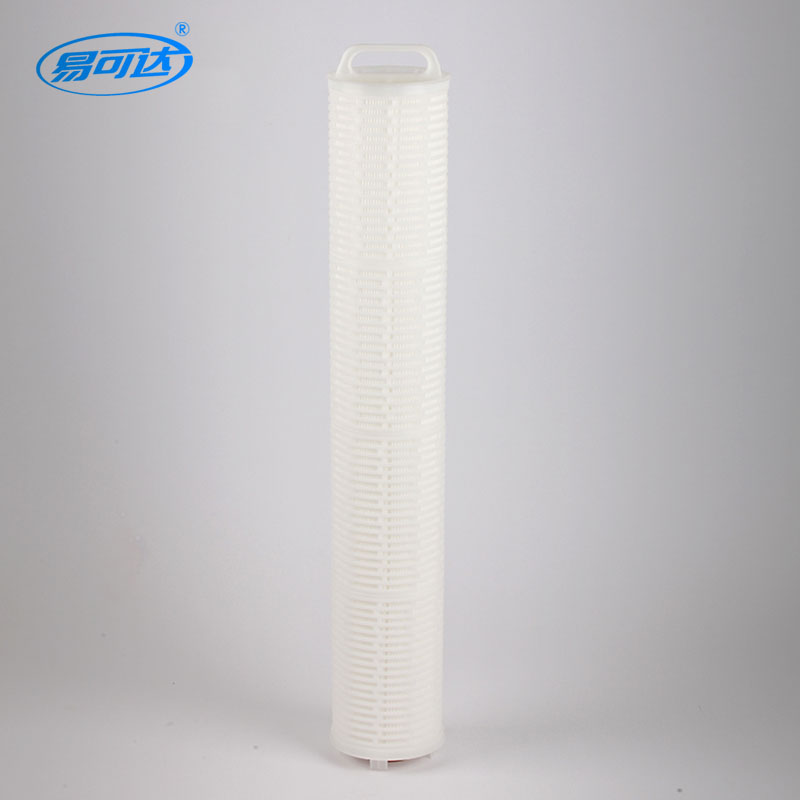

High-flow filter element-40 inches  3m

High-flow filter element-40 inches 3m
WhatsApp
Yuncheng County, Heze City, Shandong Province, China
Address
Contact Us
Product parameters
Details display

Brand

HuiSiDun

Filter Material

folding glass fiber,folding deep-seated PP, Melt-blown PP

Sealing ring material

all kinds of sealing ring can be provided, Including ethylene propylene rubber, silicone rubber, nitrile rubber and fluorocarbon rubber

Filter Length

20inch, 40inch, 60inch

External diameter

6inch(152mm)

Filter precision

1μm,4.5μm,6μm.10μm,20μm,40μm,70μm,100μm

Maximum allowable operating temperature

folding glass fiber:121℃

folding PP:82℃

Melt-blown PP:65℃

Maximum allowable pressure drop

folding glass fiber:3.4bar, 121℃

folding PP:3.4bar, 82℃

Melt-blown PP:1.03bar, 65℃

Recommended maximum filtered water flow

20inch filter element: 660LPM

40inch filter element: 1300LPM

60inch filter element: 1900LPM

Gasket / O - rings

Silicone, NBR, EPDM, Viton

Sealing Method

Thermal Bonding Technique

Interface

DOE,215,222,226flat/fins9DOE,215,222,226


df1c17ef-bec3-48ef-a608-f3d363e4547f

厂房1
Heze Haiyi Xing Import and Export Co., Ltd.

Heze Haiyi Xing Import and Export Co., Ltd. is a large-scale production base for water purification filter materials. The company is located in Shandong, China, and its factory covers an area of over 50,000 square meters. We have over 60 advanced automated production lines, including 26 PP cotton production lines, 15 activated carbon production lines, 5 folding production lines, 2 large-scale process production lines, 2 RO film production lines and 10 winding production lines. It also has 20 injection molding machines, achieving one-stop production from spare parts to finished products. We have passed the ISO9001 certification and possess a professional production system. We own the trademark "Yikeda", which is widely popular in both domestic and international markets. We support OEM and customization of special sizes. We have a wide range of products from household water purifiers to industrial ones, providing customers with multiple water purification solutions. Our production capacity is sufficient. We can produce 200,000 water purification filters every day and can deliver them at lightning speed. In terms of quality, we have a complete review system and after-sales service process. Our mission is to create good chips for the world. We will treat customers with high-quality service and a warm attitude, and look forward to cooperating with you.
