PP Pleated Filter-20-inch folding

PP Pleated Filter-20-inch folding
WhatsApp
Yuncheng County, Heze City, Shandong Province, China
Address
Contact Us
Product parameters
Details display

Brand

YIKEDA

Filter medium

PES Fibre Membrane/PP Polypropylene




Support layer

Polypropylene (PP)




Filter cage

Polypropylene (PP)




Pore size

0.1,0.2,0.45,0.65,1µm

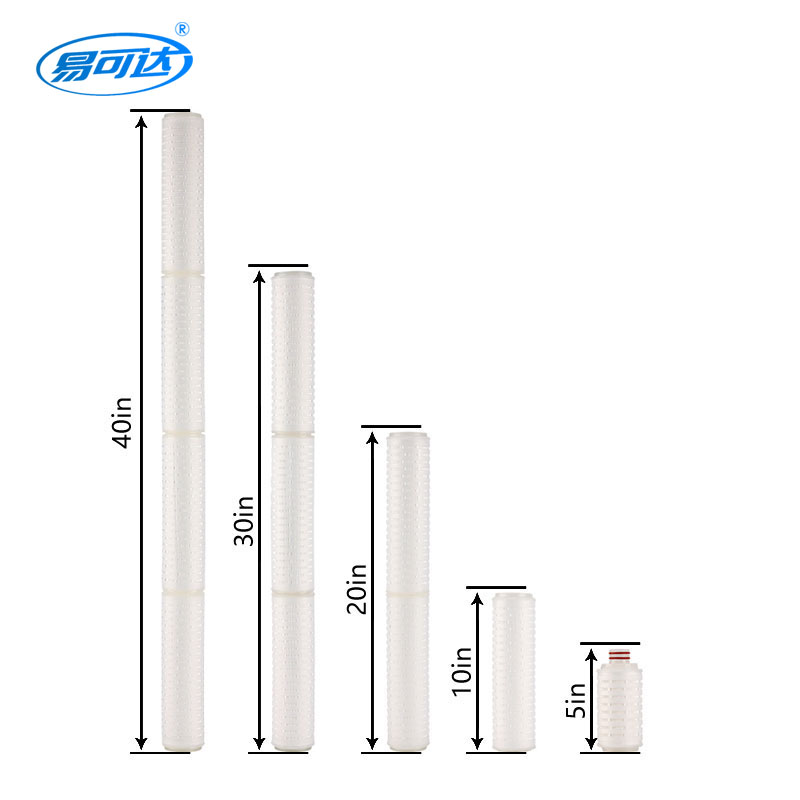

Length

5/10/20/30/40 inches




OD/ID

69 mm-34 mm




Gasket / O - rings

Silicone, NBR, EPDM, Viton

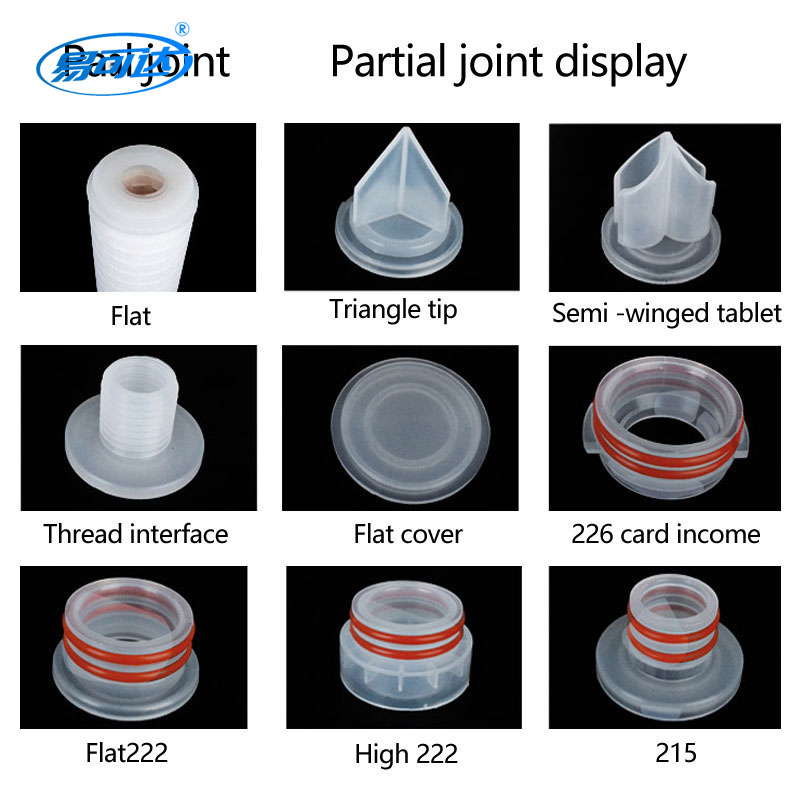

Interface

DOE,215,222,226flat/fins




End caps

DOE,0050,0050A,0050B




Sealing method

thermal bonding technique




Effective filtration area

0.6 m2/10"




Max. operating temperature

PES Fibre Membrane:140℃, 0.28 Mpa/PP Polypropylene:85℃/0.2 MPa; 25 ℃ (≥ 0.4 MPa)




Max. forwarder differential pressure

0.42 Mpa (25℃)




Max. reverse differential pressure

0.21 Mpa (25℃)




Sterilizing temperature

121℃ 30min






PVDF for liquid filtration

PVDF membrane for liquid filtration.

Absolute Rating

Filtration effective is ≥99.99%

Minimum pore size is 0.1um, suitable for critical liquid filtration

Wide Chemical

Suitable for strong alkaline and acid enviroment

compatability

Resistance to the halogens and oxide

High viscosity liquid filter

Best choice for critical filtration of high viscosity liquid.

Materials

Filter Media: PVDF Membrane

PVDF Membrane: Polypropylene

Inner core: Polypropylene /SUS304

Outer Support: Reinforced Polypropylene Cage

Adapter: Polypropylene

Operating Conditions(操作条件)

Normal Operating Temperature: Up to 65℃ (149℉) )

Max.Operating Temperature.: 90℃ (194℉)at P≤1.0 bar (14psi)

Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉);

Reverse flow direction 2.1 bar (30psi) at 25℃ (77℉)

PH Value compatibility: 1-13

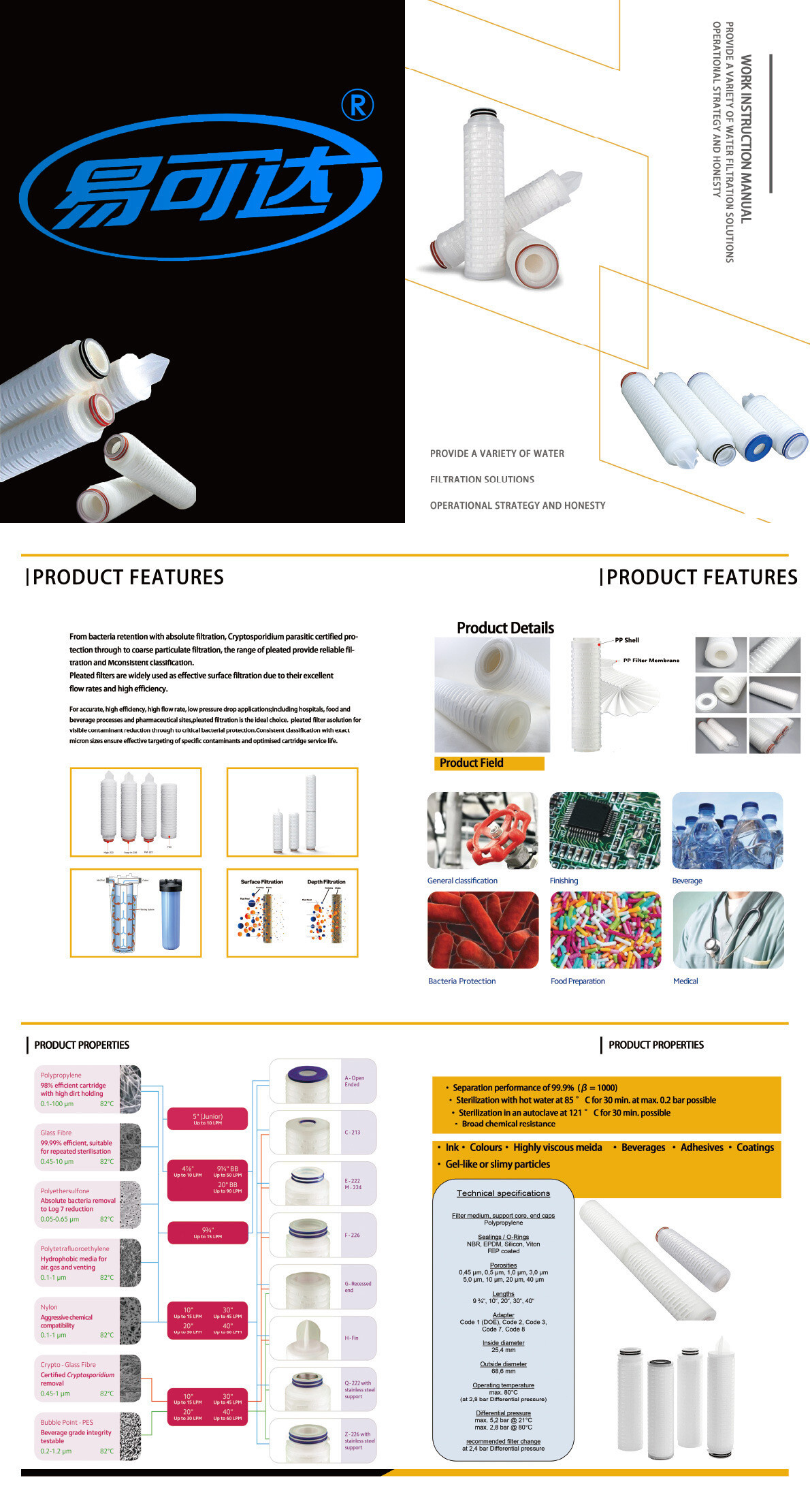

未标题-1

厂房1
Heze Haiyi Xing Import and Export Co., Ltd.

Heze Haiyi Xing Import and Export Co., Ltd. is a large-scale production base for water purification filter materials. The company is located in Shandong, China, and its factory covers an area of over 50,000 square meters. We have over 60 advanced automated production lines, including 26 PP cotton production lines, 15 activated carbon production lines, 5 folding production lines, 2 large-scale process production lines, 2 RO film production lines and 10 winding production lines. It also has 20 injection molding machines, achieving one-stop production from spare parts to finished products. We have passed the ISO9001 certification and possess a professional production system. We own the trademark "Yikeda", which is widely popular in both domestic and international markets. We support OEM and customization of special sizes. We have a wide range of products from household water purifiers to industrial ones, providing customers with multiple water purification solutions. Our production capacity is sufficient. We can produce 200,000 water purification filters every day and can deliver them at lightning speed. In terms of quality, we have a complete review system and after-sales service process. Our mission is to create good chips for the world. We will treat customers with high-quality service and a warm attitude, and look forward to cooperating with you.
