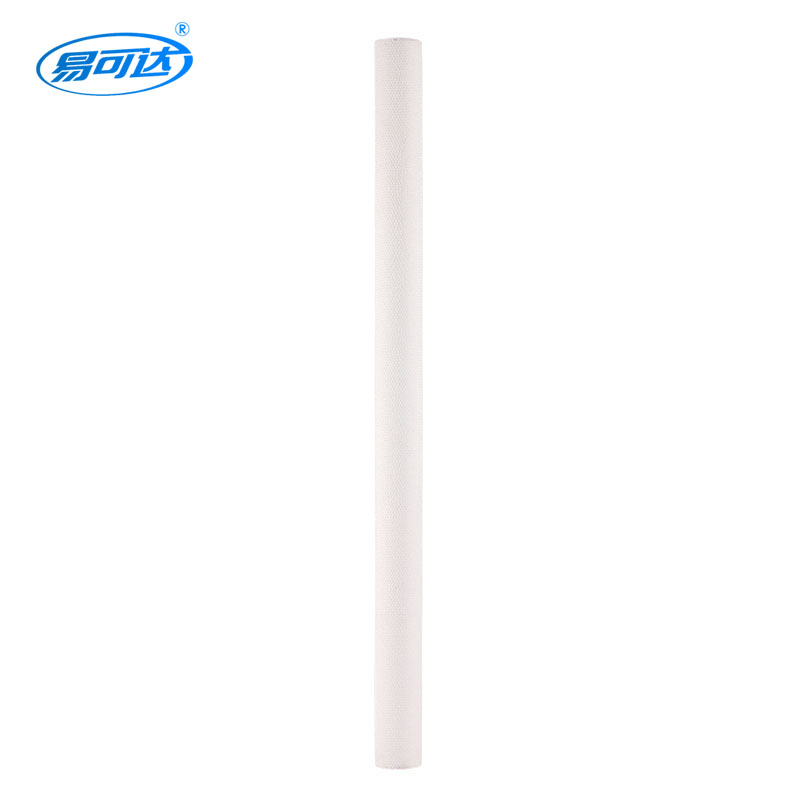

PP cotton filter-40 inches

PP cotton filter-40 inches
WhatsApp
Yuncheng County, Heze City, Shandong Province, China
Address
Contact Us
Product parameters
Details display

Brand

HuiSiDun

Size

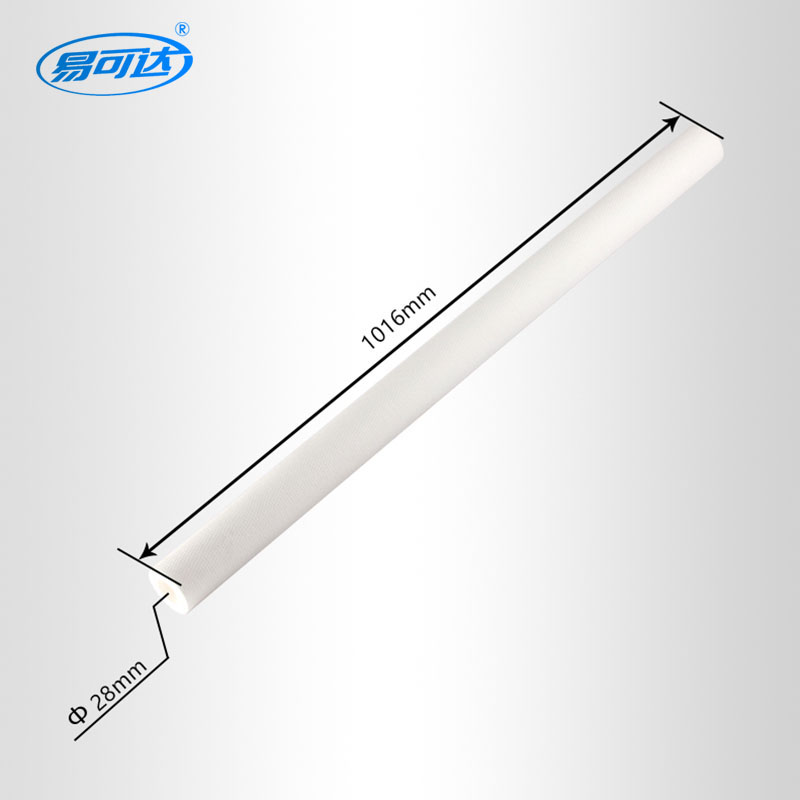

Diameter: 2.75" (69 mm) 4.5"(120 mm)

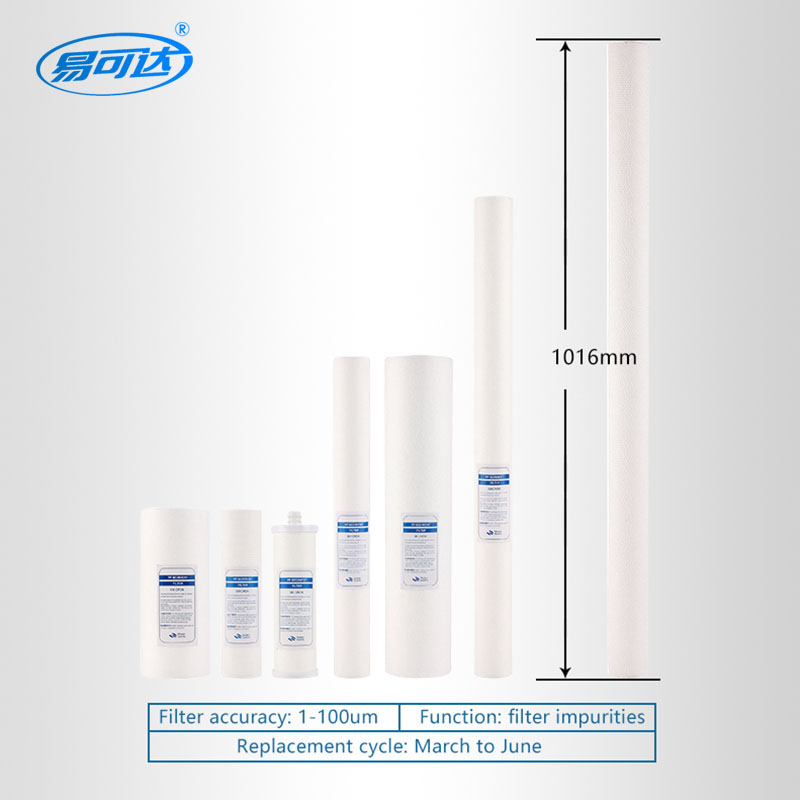

Length: 5"/10"/20"/30"/ 40" etc.




Filtration Area

Single 10" filter element is about 0.65m²




Dissolution(20℃)

Testing The filters without pre-washing . After 24 hours immersion in water, the dissolution was less than 30 mg/10"
filters.




Minimum Bubble Point of Integrity Test Data

0.1 μm: > 0.38 MPa in Water




0.22 μm : > 0.32 MPa in Water




0.45 μm: > 0.20 MPa in Water




Conditions of steam sterilization and hot water sterilization

Sterilization temperature: hot water 85℃




Steam 121 ℃/30 min, more than 15 times




Maximum pressure difference and temperature

Maximum operating temperature: 85℃/0.2 MPa; 25 ℃




Typical flow rate (Water, 20℃)

0.1 um: 4 lpm/0.01MPa/10"




0.22 um: 10 lpm/0.01MPa/10"




0.45 um: 15 lpm/0.01MPa/10"





1ac3b0b3-fe42-49e2-9553-feebcc3cd37d

厂房1
Heze Haiyi Xing Import and Export Co., Ltd.

Heze Haiyi Xing Import and Export Co., Ltd. is a large-scale production base for water purification filter materials. The company is located in Shandong, China, and its factory covers an area of over 50,000 square meters. We have over 60 advanced automated production lines, including 26 PP cotton production lines, 15 activated carbon production lines, 5 folding production lines, 2 large-scale process production lines, 2 RO film production lines and 10 winding production lines. It also has 20 injection molding machines, achieving one-stop production from spare parts to finished products. We have passed the ISO9001 certification and possess a professional production system. We own the trademark "Yikeda", which is widely popular in both domestic and international markets. We support OEM and customization of special sizes. We have a wide range of products from household water purifiers to industrial ones, providing customers with multiple water purification solutions. Our production capacity is sufficient. We can produce 200,000 water purification filters every day and can deliver them at lightning speed. In terms of quality, we have a complete review system and after-sales service process. Our mission is to create good chips for the world. We will treat customers with high-quality service and a warm attitude, and look forward to cooperating with you.
